Pallet Grain Bin
6552

– Overview –

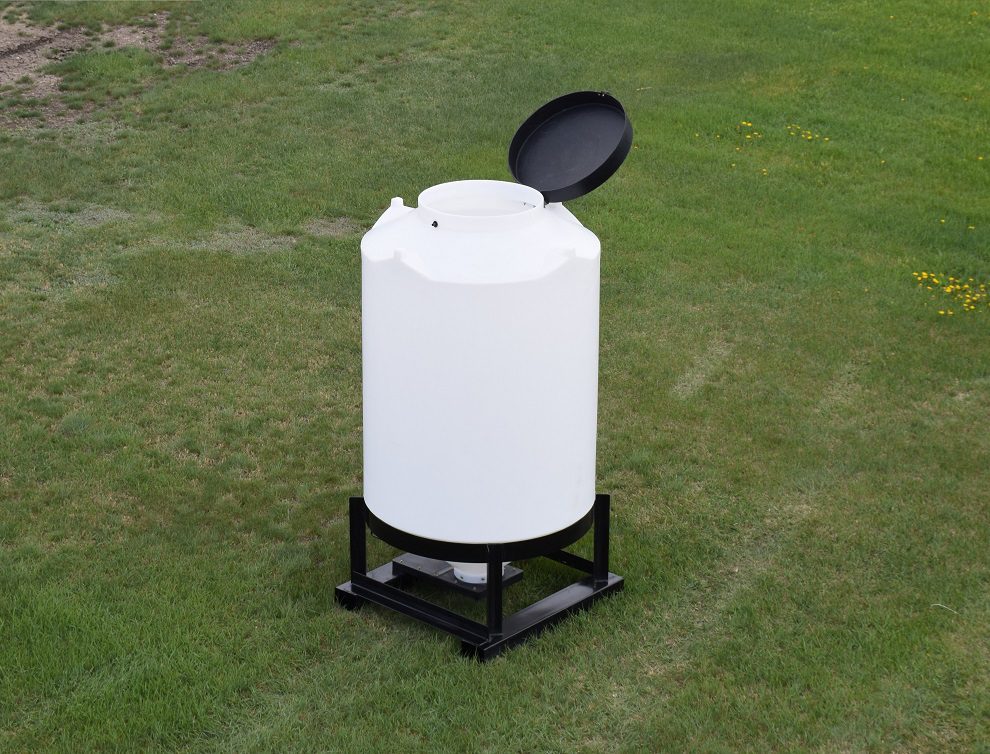

a 52 bushel pallet grain bin with its lid open on the grass

The Pallet Bin 6552, affectionately called “The Rocket” for its sleek look, is a 52 bushel grain bin made for the rigorous conditions of portable storage. It was originally designed for the University of Saskatchewan’s agricultural test plots, but quickly became a bestseller with a large customer basis.

a red tractor emptying feed into a 52 bushel pallet grain bin into a creep feeder
Being Used to Fill a Creep Feeder

The polyethylene grain bin is fastened securely to a fully welded, steel stand so you can rest assured that this unit will stand the test of time. The large lid opening makes filling this grain bin hassle free and the hopper bottom slope allows for complete emptying.

Highlights


Rigid Steel Stand

steel stand and slider of a 52 bushel pallet grain bin
Built Heavy Duty

This portable bulk feed storage bin is fastened to a rigid steel stand built with 3/16″ thick angle irons. It is sure to last all the abuse it will get from moving grain around the farm.

Portable Grain Storage

under side of a 40 bushel pallet grain bin being lifted by a skid steer
Efficient and Easy to Move

We designed this pallet grain bin with dedicated fork pockets for ease of moving and a side access pull rod that pinches off the flow of grain effortlessly. The pallet grain bin features a 40 degree hopper bottom slope that completely empties out and is easy to clean.

Weather & Rodent Proof Storage

lid assembly of a 52 bushel pallet grain bin
Secure Design

The Pallet Bin 6552 was designed to replace the need for difficult fabric bulk feed bags. Our grain bins address the issues with those products. Our pallet grain bin prevents any pests from getting into your grain and make a mess. They also prevent moisture from creeping in and can be left out in the rain with no issues. This means no more unwelcome surprises come seeding time.

Designed for Secure Shipping

taper on a 52 bushel pallet grain bin used for strapping
Pointed Tapers for Strapping Down

The Pallet Bin 6552 is designed with anchor points molded into the bin. These pallet grain bins will be securely held in place when transporting on the flat bed of trucks or on flat deck trailers.


Product Showcase


Specifications

Capacity

  • 52 Bushels/65 Cubic Feet
  • 1.5 Metric Ton Weight Rating

Dimensions

  • 46″ W x 46″ L x 86″ H
  • 24″ Lid
  • 9″ Slider Opening
  • 40 Degree Hopper Bottom Slope
  • 235 lbs. Empty

Features

  • Lid Secured Closed by Pin and Latch
  • Tapers For Ease of Attaching Ratchet Straps
  • Fastened to a Rigid Steel Stand
  • Move with Skid-steer, Forklift, Pallet Jacks
  • UV Resistant High Impact Polyethylene Plastic Material
  • Weather and Rodent Resistant
  • Plastic Construction Allows for Easy Cleaning
  • Minimal Rust and Corrosion
